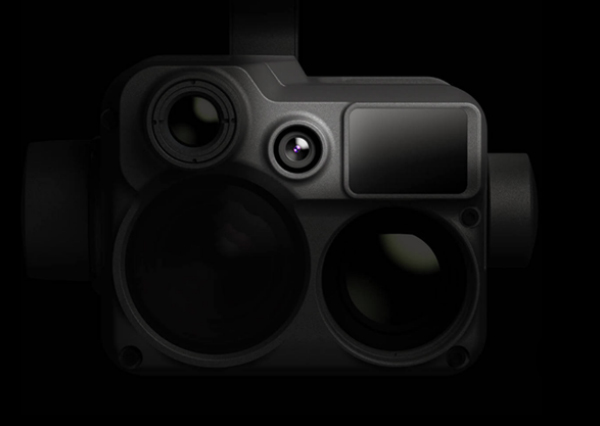

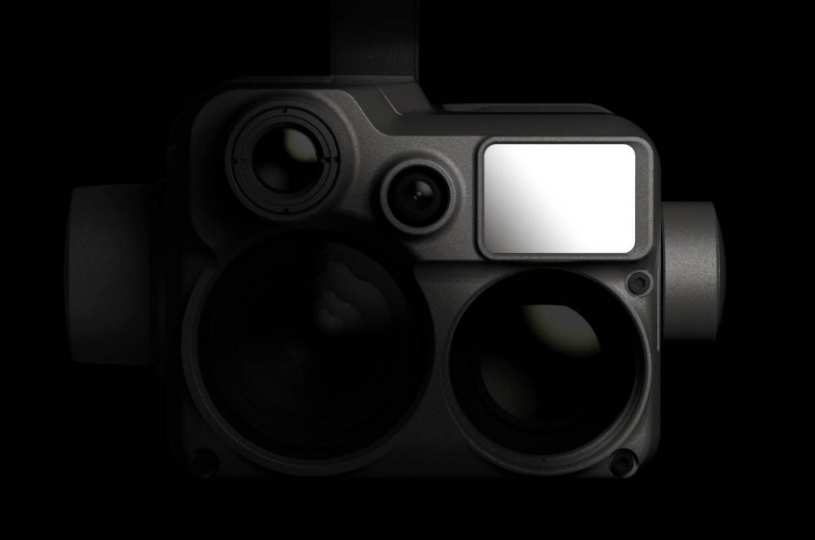

CAMERA-N

General

• Product Name

• CAMERA-N

• Dimensions

• 178x135x161 mm

• Weight

• 878±5 g

• Protection Rating

• IP44

• Laser Safety

• Class 1M (IEC 60825-1:2014)

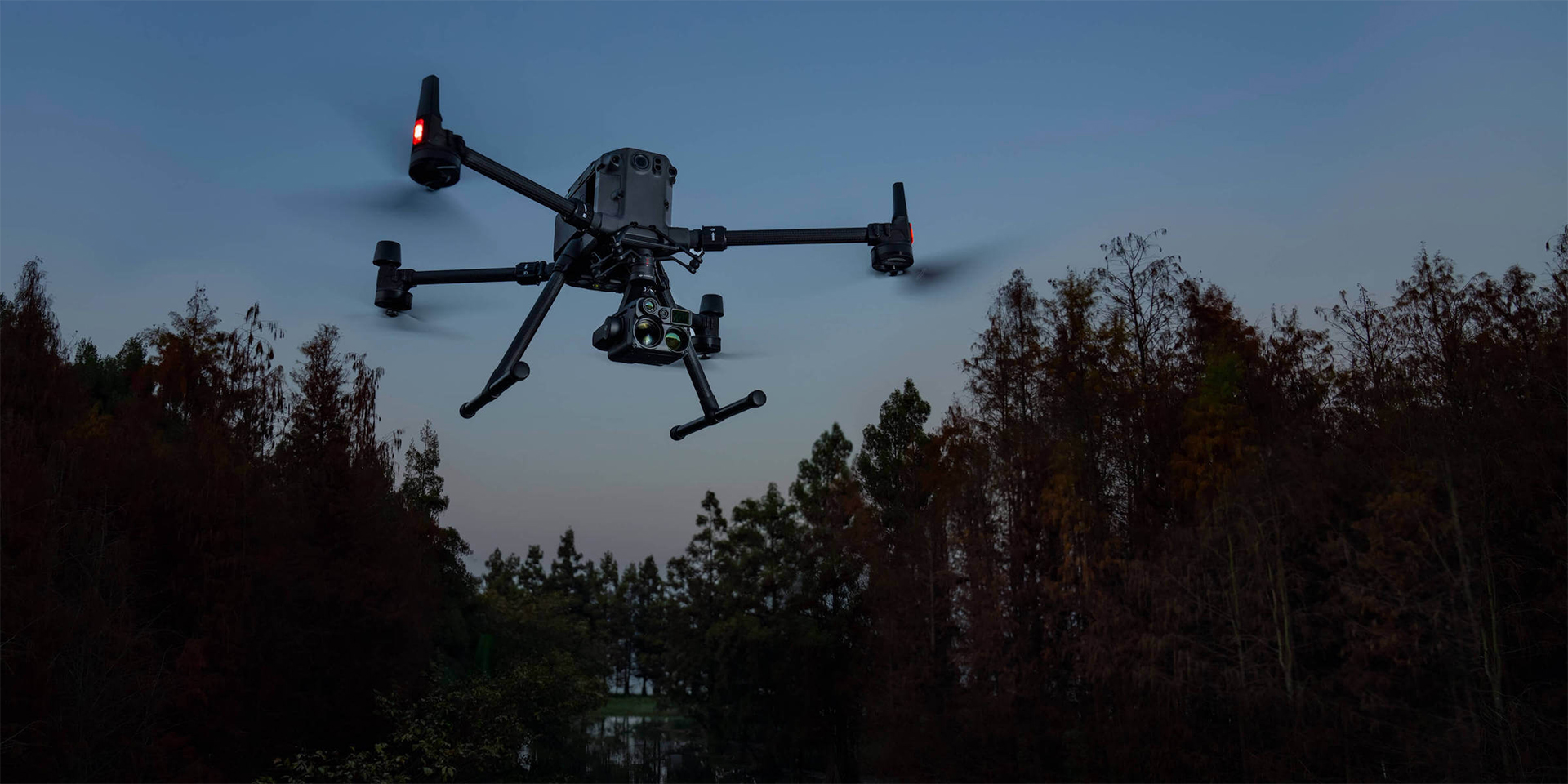

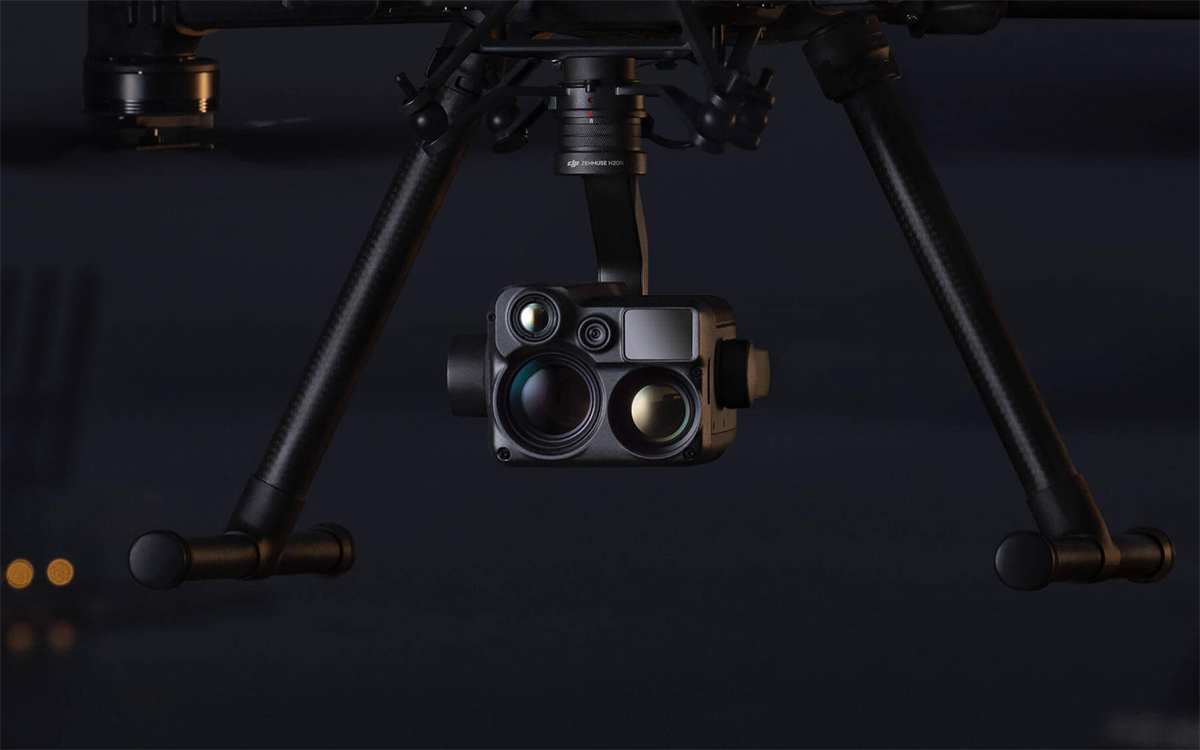

• Supported Aircraft

• Air Drone

Gimbal

• Angular Vibration Range

• ±0.01°

• Mount

• Detachable

• Controllable Range

• Pan: ±320°
  Tilt: -120° to +60°

• Mechanical Range

• Pan: ±330°
  Tilt: -132.5° to +68°
  Roll: -90° to +60°

• Max Control Speed

• Pan: 90°/s
  Tilt: 90°/s

Zoom Camera

• Sensor

• 1/1.8" CMOS; Effective Pixels: 4M

• Lens

• Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm)
  Aperture: f/1.6-f/11
  Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)

• Focus Mode

• MF/AF-C/AF-S

• Exposure Mode

• Manual, Auto

• Exposure Compensation

• ±3.0 (1/3 increments)

• Metering Mode

• Spot Metering, Average Metering

• AE Lock

• Supported

• Electronic Shutter Speed

• Photo: 8-1/8000 s
  Video: 1/30-1/8000 s
  Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s
  Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s

• ISO Range

• Video: 100-102400
  Photo: 100-102400

• Video Resolution

• 2688×1512@30fps
  1920×1080@30fps
  1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off)
  1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On)

• Video Format

• MP4

• Video Caption

• Supported

• Max Image Size

• 2688×1512

• Photo Format

• JPEG

Wide Camera

• Sensor

• 1/2.7" CMOS; Effective Pixels: 2M

• Lens

• DFOV: 73.6°
  Focal Length: 4.5 mm (equivalent: approximately 29 mm)
  Aperture: f/2.8
  Focus: 1 m to ∞

• Exposure Mode

• Auto

• Exposure Compensation

• ±3.0 (1/3 increments)

• Metering Mode

• Spot Metering, Average Metering

• AE Lock

• Supported

• Electronic Shutter Speed

• Photo: 0.8-1/8000 s
  Video: 1/30-1/8000 s
  Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s
  Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s

• ISO Range

• Video: 100-102400
  Photo: 100-102400

• Video Resolution

• 1920×1080@30fps
  1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off)
  1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On)

• Video Format

• MP4

• Video Caption

• Supported

• Max. Image Size

• 1920×1080

• Image Format

• JPEG

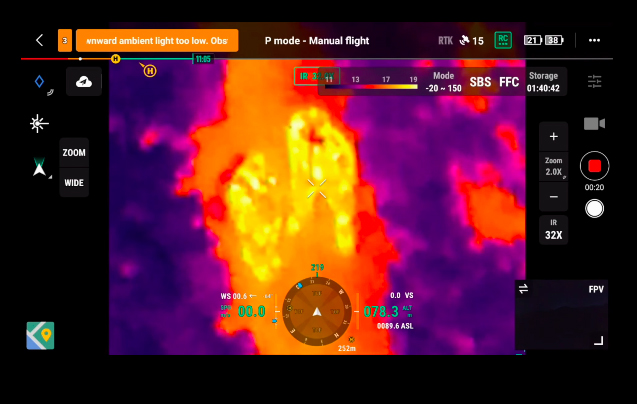

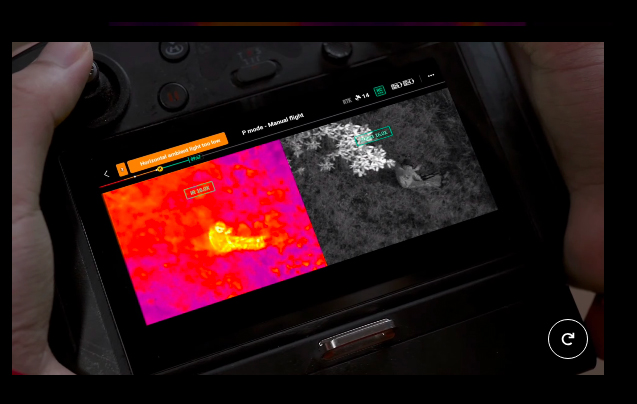

Tele Infrared Thermal Camera

• Thermal Imager

• Uncooled VOx Microbolometer

• Lens

• DFOV: 12.5°
  Focal Length: 44.5 mm (equivalent: approximately 196 mm)
  Aperture: f/1.2
  Focus: 45 m to ∞

• Equivalent Digital Zoom

• 16x, 32x

• Video Resolution

• 640×512@30fps

• Video Format

• MP4

• Image Resolution

• 640×512

• Image Format

• R-JPEG* (16 bit raw included)

• Pixel Pitch

• 12 μm

• Spectral Band

• 8-14 μm

• Noise Equivalent Temperature Difference (NETD)

• ≤50 mK @ f/1.0

• Temperature Measurement Method

• Spot Meter, Area Measurement

• Scene Range

• -20° C to 150° C (High Gain)
  0° C to 500° C (Low Gain)

• Temperature Alert

• Supported

• FFC

• Auto/Manual

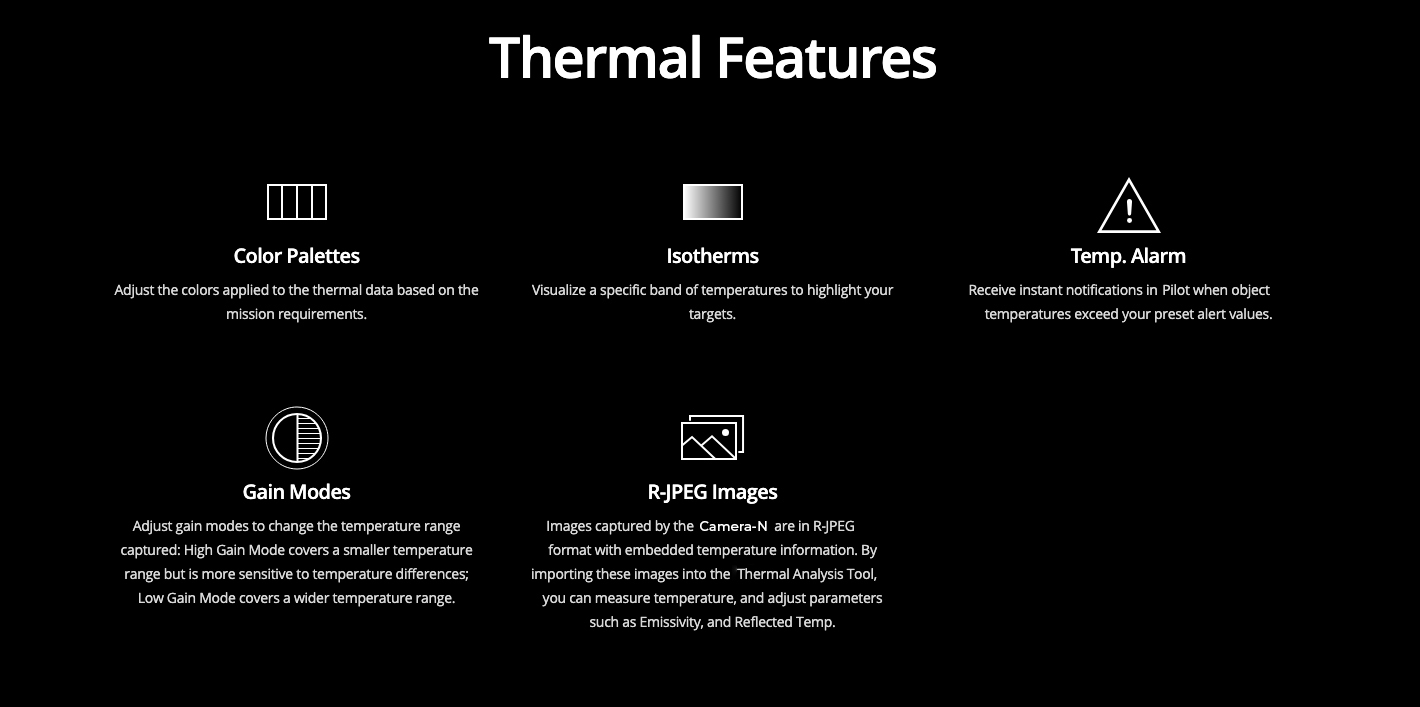

• Palette

• White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Wide Infrared Thermal Camera

• Thermal Imager

• Uncooled VOx Microbolometer

• Lens

• DFOV: 45.5°
  Focal Length: 12 mm (equivalent: approximately 53 mm)
  Aperture: f/1.0
  Focus: 5 m to ∞

• Equivalent digital zoom rate

• 4x

• Video Resolution

• 640×512 @ 30 fps

• Video Format

• MP4

• Image Resolution

• 640×512

• Image Format

• R-JPEG (16 bit raw included)

• Pixel Pitch

• 12 μm

• Spectral Band

• 8-14 μm

• Noise Equivalent Temperature Difference (NETD)

• ≤50 mK @ f/1.0

• Temperature Measurement Method

• Spot Meter, Area Measurement

• Scene Range

• -20° to 150° C (High Gain)
  0° to 500° C (Low Gain)

• Temperature Alert

• Supported

• FFC

• Auto/Manual

• Palette

• White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Laser Range Finder

• Wavelength

• 905 nm

• Maximum Power

• 3.5 mW

• Single Pulse Width

• 6 ns

• Measuring Accuracy

• ± (0.2 m + target distance x 0.15%)

• Measuring Range

• 3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity)

• Safety Regulation Level

• Class 1M

• Accessible Emission Limit (AEL)

• 304.8 nJ

• Reference Aperture

• 18mm length, 18mm width (20.3mm diameter if equivalent to circular)

• Max Laser Pulse Emission Power Within 5 Nanoseconds

• 60.96 W

Storage

• Supported microSD Cards

• Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB

• Supported File System

• exFAT

Environment

• Operating Temperature

• -20° to 50° C (-4 to 122°F)

• Storage Temperature

• -20° to 60° C (-4 to 140°F)
