Cathodic Protection Intelligent Monitoring System

  Home   ⁄   Midstream

Cathodic Protection Intelligent Monitoring System

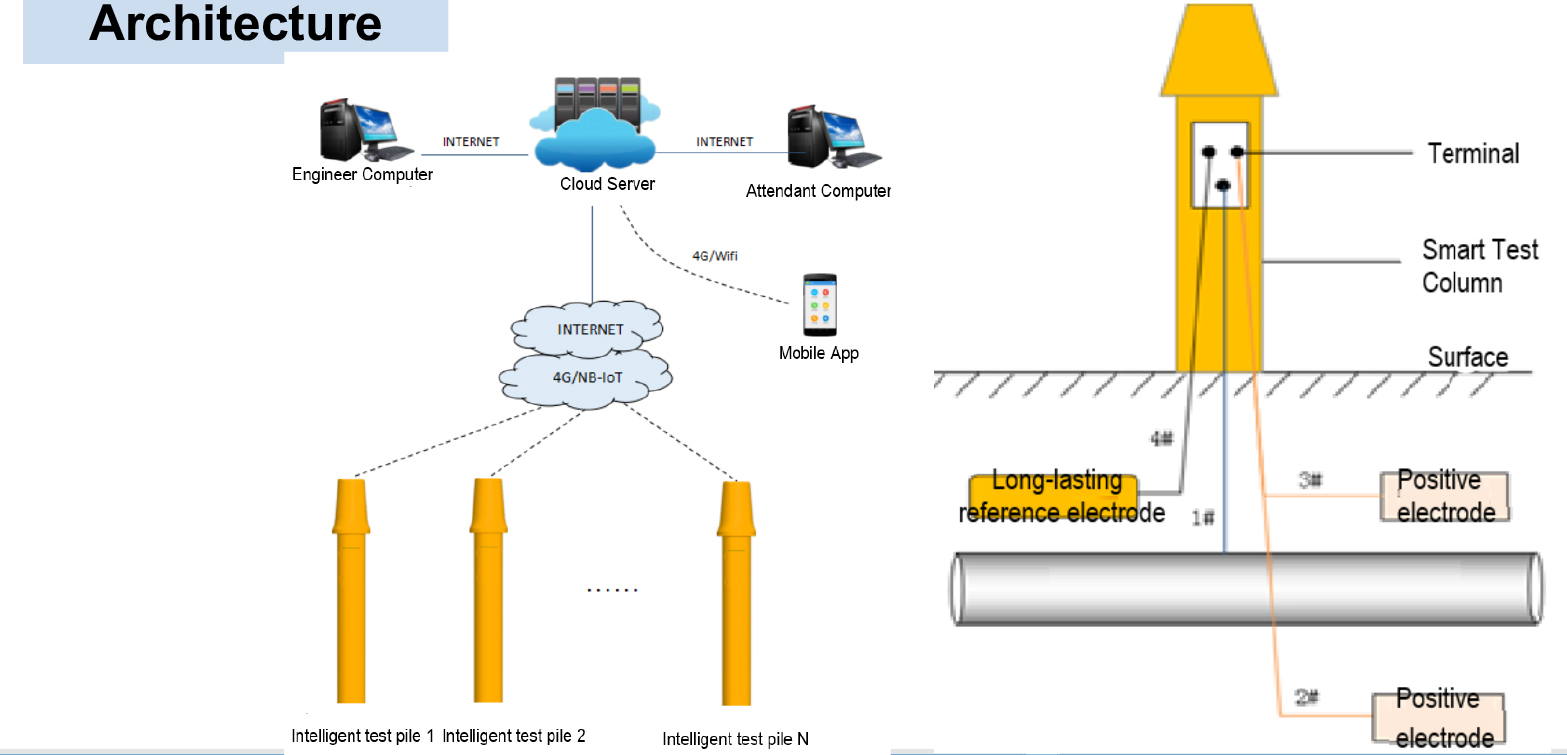

Business Scope A This product uses intelligent test piles to automatically collect data such as pipeline protection potential, corrosion current, pipeline natural potential. anode natural potential, the device's own battery voltage and upload it to the cloud server regularly through the 4G/NB-IoT network.

A Install the pipeline cathodic protection intelligent monitoring and management system software on the cloud server. The software Is designed with a BiS (browser/server) structure, and uses the SQLSERVER database to store massive data, providing electronic maps, data display, out-of-limit alarm, Data query and various statistics and analysis functions, support remote access to computers and mobile APPs.

Value

  • Long-distance oil and natural gas pipelines mostly use anti-corrosion coating and cathodic protection technology to prevent the aging of the anti-corrosion layer.
  • Negative potential is applied to the pipeline by means of potentiostat or sacrifidal anode, so that the pipeline can forms a cathode to the ground, creating protection and slowing down corrosion.
